| Load capacity | |
| Total load capacity: | 80 kg / 176 lbs |
| Load capacity of shelf (distributed load): | 20 kg / 44 lbs |
| Dimensions: Basic frame | |
| Width: | 610 mm |
| Depth: | 620 mm |
| Total height: | 884 / 1172 / 1332 mm |
| Dimensions: Shelf | |
| Width: | 450 mm |
| Depth: | 400 mm |
| Electrification | |
| Isolating transformer: | 660 VA / 1200 VA / 1600 VA |
| Central on / off switch: | yes |
| Socket strip: | yes |
| Planning support | |
Basket
Basket for medical accessories, adjustable height.
$100.00
Drawer block
Drawer blocks in various designs: heights, lockable w/ handle or mouse pad. All have extendable rails, self-closing.
$100.00
Gas bottle holder
Gas bottle holders mount anywhere on support column.
$100.00
Shelf
Shelves with raised edges provide a secure hold and sufficient space for large appliances.
$100.00
Power pack holder
Power supply units with a maximum circumference of 420 mm can be easily accommodated.
$100.00
Keyboard drawer
The keyboard drawer offers safe cable management when sliding in and out. The integrated mouse pad can be pulled out on the left or right.
$100.00
Handle
With a push handle on the back, the single-column cart can be moved comfortably and safely.
$100.00
Monitor mount
Various monitor mounts can be combined with all manufacturer-specific monitors: VESA 75 / 100 adapters, universal adapters or tabletop mount adapters.
$100.00
Endoscope holder
Endoscope holders ensure secure, kink-free mounting of endoscopes of all common makes.
$100.00
Isolating transformer
An isolating transformer with up to 1600 VA can be easily accommodated.
$100.00
Camera holder
The camera mount securely holds all standard cameras, protects the eyepiece from damage, and offers optimal protection with its form-fitting design.
$100.00
- Development of products to the highest international standards and norms
- Certified quality in accordance with DIN EN ISO 13485 and DIN EN ISO 60601-1
- Conformity with MDR 2017/745
- FDA-registered (3007713438)
- Intensive tests for safe everyday use
- Extremely high hygiene standard in accordance with German Society of Hospital Hygiene (DGKH)
Product Benefits

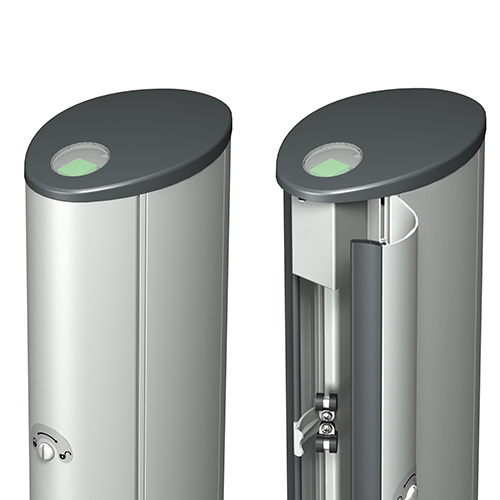

Spacious, lockable column
Provides space for long socket strips, protection against unauthorized access and easy access to routed cables with drag chain even during height adjustments.

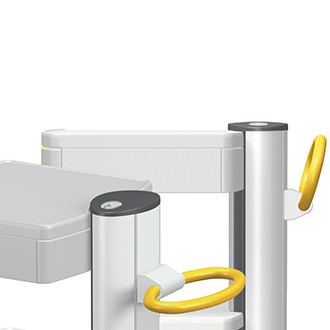

Differentiation in the market
The adjustable push handle in CI colors makes maneuvering effortless and sets the cart apart from its competitors.

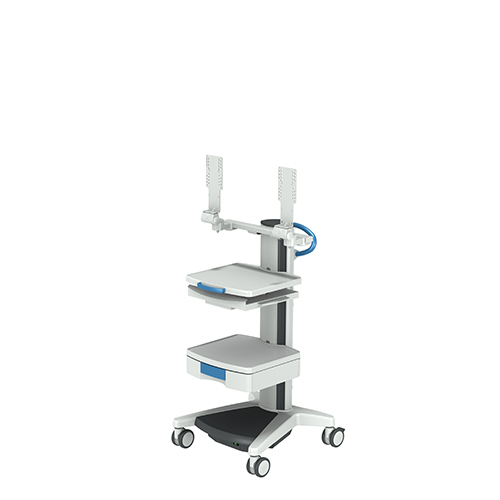

Flexible monitor mount
Various monitor mounts for monitors up to 14 kg / 30 lbs, VESA 75/100, universal and table top adapters.

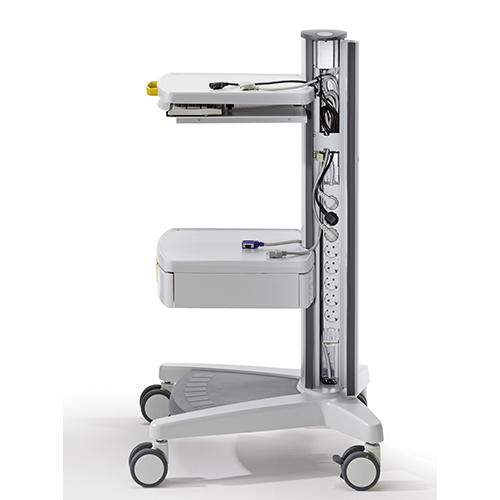

Safe electrification
Isolating transformer guarantees electrical safety for patients and users, enables international use by switching the voltage (115 V and 230 V).

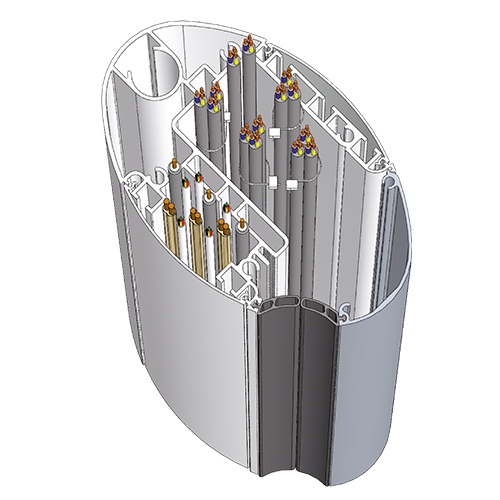

Safe cable management
Separate routing of data and power cables guarantees electrical safety and prevents electromagnetic interference.
Ergonomically optimized workstation

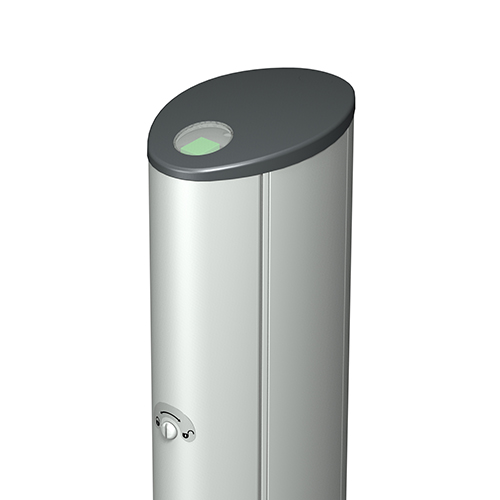

The central on/off switch on the column enables ergonomic operation of the isolating transformer.
